How do I configure Patton ISDN VOIP Gateways for a Point-to-Point Connection?

This article applies to ISDN lines and ISDN gateways only.

An ISDN line can either be point-to-point or point-to-multipoint. If you have a point-to-point connection, you can only attach one device to your ISDN line. If you have point-to-multipoint connection you can attach more than one device.

You have to configure the ISDN lines connected to the Patton to be either point-to-point or point-to-multipoint depending on how your ISDN lines are configured by the Telecoms provider.

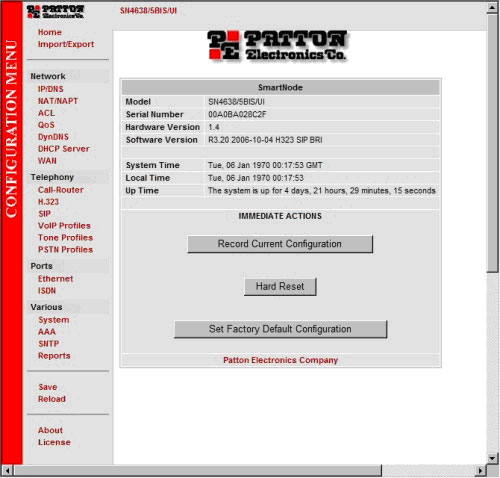

  1. Point your browser to your SN-4638 and log in (default username: administrator; default password: leave empty)

  2. In the left-hand side, in the “Ports” section, click on the “ISDN” link.

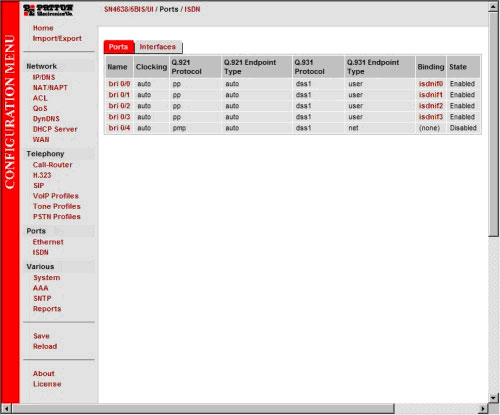

  3. In the Ports table, click on the “bri 0/0” link.

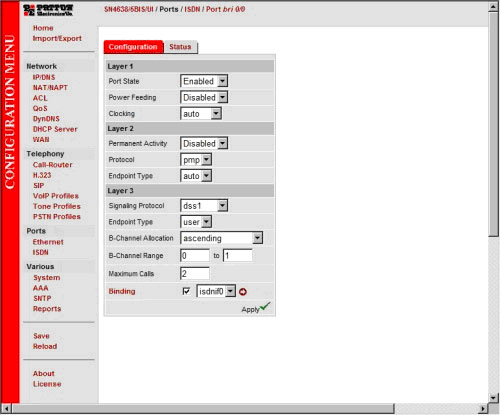

  4. In the “Layer 2” section, change the “Protocol” field to “pp”. Click the tick mark next to the “Apply” label at the bottom of the page. Note: For Point to Multipoint select pmp option from the drop down menu.
  5. Repeat steps 2-5 for all BRI interfaces.
  6. In the left-hand side, click the “Save” link.
  7. In the “Save Configuration” window, click the “Save” button to make your changes permanent.
