Beronet FXS as an extension in 3CX Phone System

Introduction

In many cases an analog door module, an old analog phone, or a bell must be registered to the 3CX Phone System as an internal extension. This guide will guide you through the process of registering an FXS port on your Beronet Gateway, as an extension in the 3CX Phone System.

Note: Following this guide you can connect a FAX to the FXS port. You will however need to create the extension as a “FAX device” and not as an “extension” as mentioned below. In case you are attaching a FAX while the Beronet is set as your ISDN/FXO gateway, use the built in setup assistant to create a “bypass” from the FXS port to the ISDN/FXO port and vice-versa, skipping this guide.

Step 1: Create Internal Extension

All extension numbers and IP’s that are shown in the screenshots should be replaced by the corresponding IP’s of your 3CX Phone System, Extension numbers etc. For the purposes of this guide we will create extension 115 on FXS Port 1.

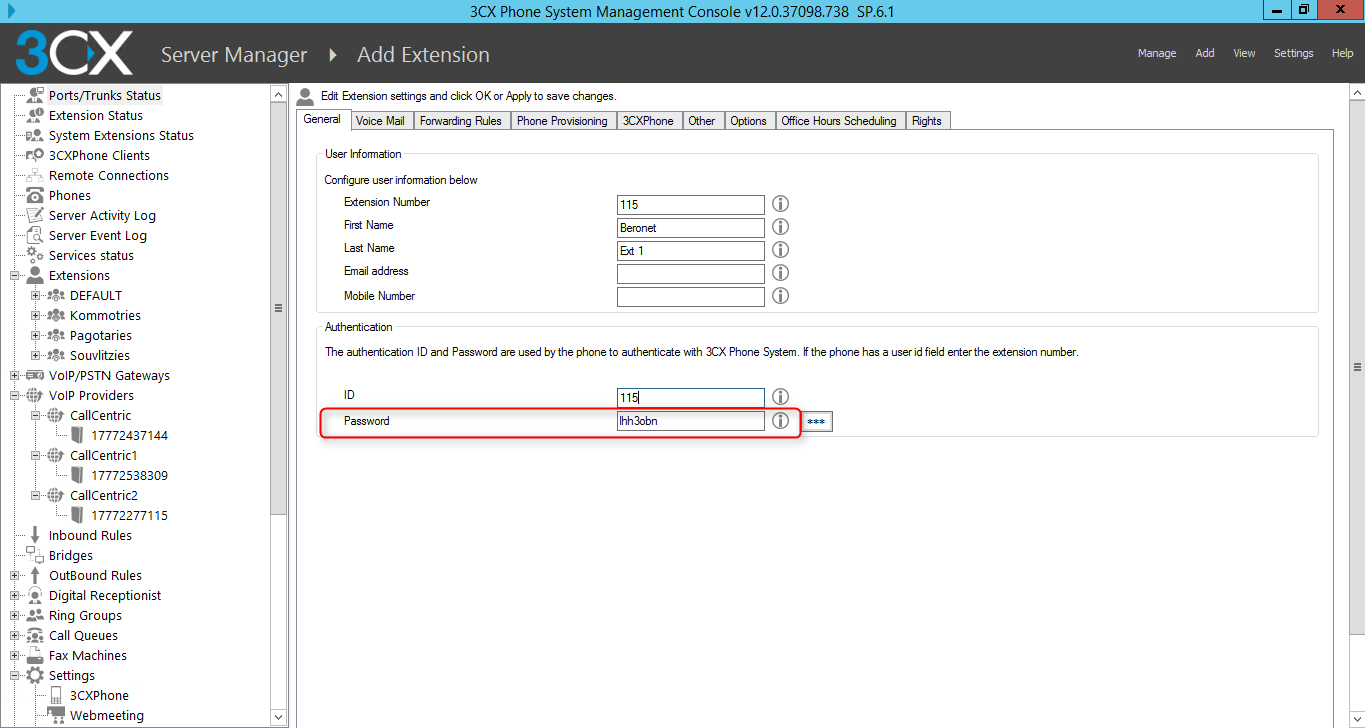

Beronet FXS 1



In the 3CX Management Console navigate to “Extensions” and create an extension by clicking “Add Extension” (for this example we will use extension 115). Note down the password as we will use it later inside the Beronet Gateway configuration.

Step 2: Create new SIP Account

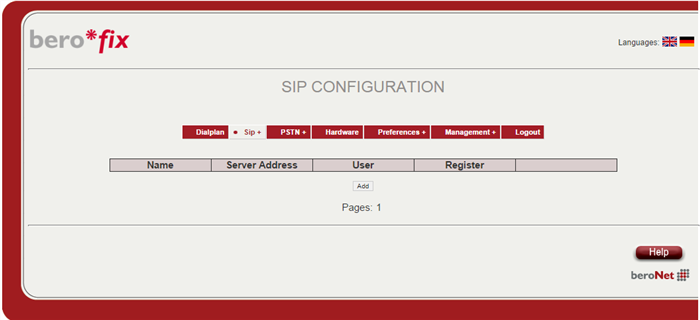

Beronet FXS 2

1. Navigate to “SIP” > “SIP” and click the “Add” button.

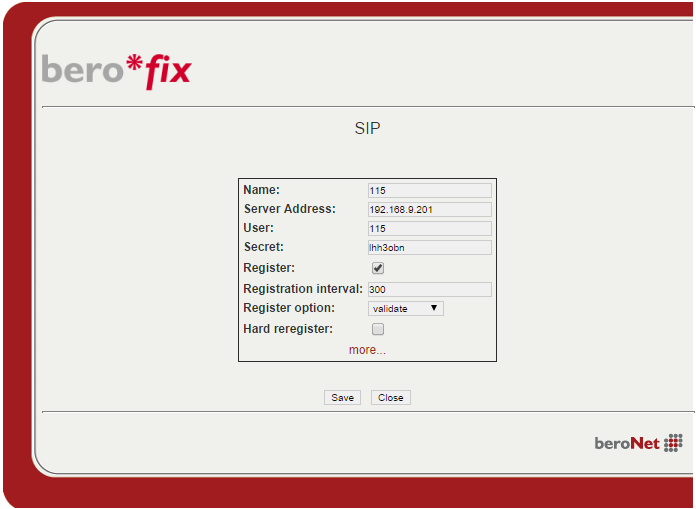

Beronet FXS 3

2. You will be presented with the following fields:

• Name: Enter Extension Number – 115.
• Server Address: IP address of your 3CX Phone System.
• User: Input the ID of the extension in this case it should be 115.
• Secret: Password previously configured in the 3CX Phone System.
• Register: Check “Register”.
• Register option: Select “Validate”.
• More: This option is not necessary to be configured at the moment.

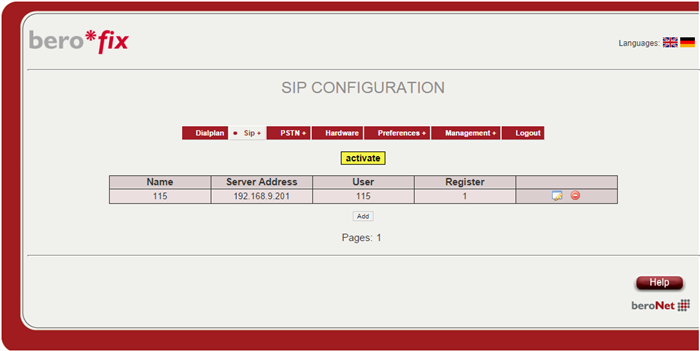

Beronet FXS 4

3. Click “Save” and then “activate” in order to activate the SIP account.
4. You should see a registration of extension 115 in the 3CX Management Console under “Phone” coming from your Beronet device.

Step 3: Create DialPlan Analog -> SIP

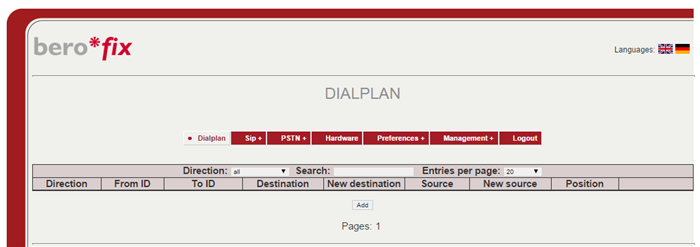

Beronet FXS 5

1. Navigate to “Dialplan” and click “Add”.

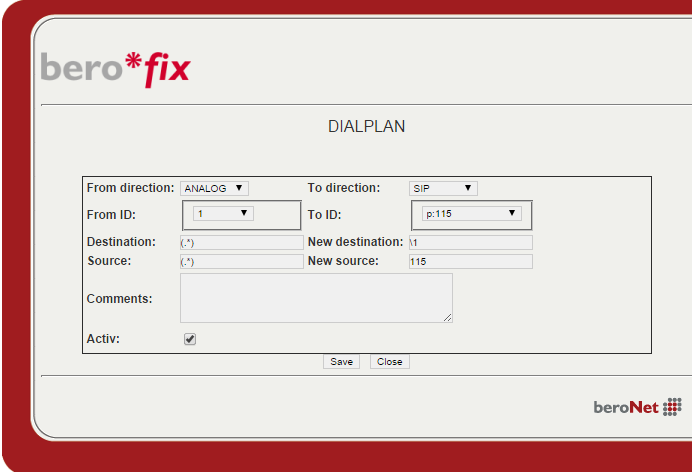

Beronet FXS 6

2. A new window will popup with the following fields:

• From Direction: Select “Analog”.
From ID: We select port 1 for this example.
• To Direction: Select “SIP”.
To ID: p:115 (The name given to the sip account).
• Destination: (.*)
New Destination: \1
• Source: (.*)
New Source: 115
• Comments: You can leave this field blank.
• Activ: Ensure that it is selected.
• First Position: Do not select the option unless you want it to be in the first position.

3. Click “Save”.

Step 4: Create DialPlan SIP -> Analog

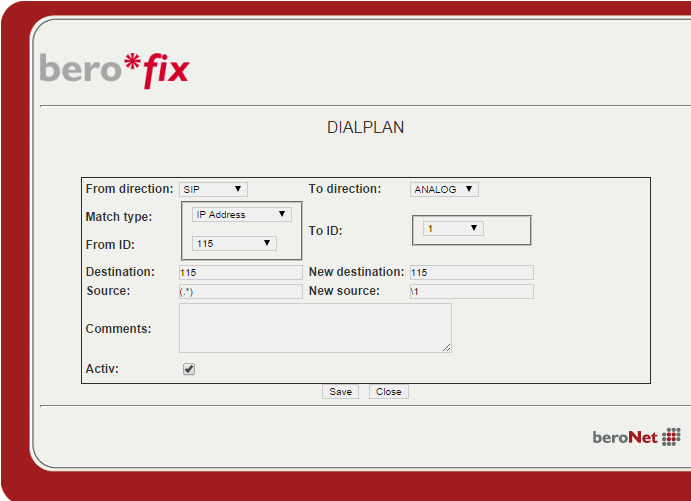

Beronet FXS 7

1. Click on the “Add” button within the dialplan page of the Beronet device and create the new dial plan as follows:

• From Direction: Select “SIP”.
   Match Type: From IP Address.
   From ID: 115 (The name given to the sip account).
• To Direction: Select “Analogue”.
   To ID: 1
• Destination: 115
   New Destination: 115
• Source: (.*)
   New Source: \1
• Comments: You can leave this field blank.
• Activ: Ensure that it is selected.
• First Position: Do not select the option unless you want it to be in the first position.

2. Click “Save”.

Step 5: Validate and Activate

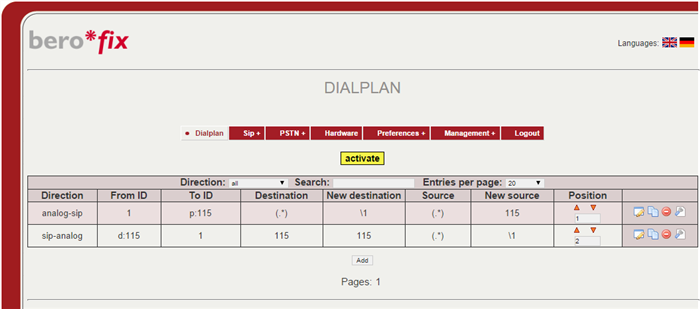

Beronet FXS 8

After adding the sip account and two dial plans click on “activate” in order to activate the settings you have just created.
