Configuring the Portech MV-370 and MV-372

IMPORTANT This device has been tested for Voice using firmware version of “Wed Jun 10 11:53:59 2009”. The guide and template may not work for earlier or later versions of the firmware!

Configuration is a 2 step process. First you need to configure 3CX Phone System for use with the Portech. Then, you need to configure the Portech to register and communicate with 3CX PhoneSystem.

Step 1: Configuring 3CX PhoneSystem for the Portech MV370/372

  • In the 3CX Management Console, click on the “Add PSTN” link in the left-hand side.
  • In the “Name” field, assign a name to this device; e.g. “Portech MV370”.
  • In the “Brand” field, select “Portech”
  • In the “Model” field, select “MV370”
  • In the “VoIP Gateway Configuration” page you will need to insert the IP Address of the device (in this example 10.0.0.37), and the port number (default is 5060)
  • The “Add VoIP Lines: Create Lines” page will appear and the necessary fields will be pre-populated with suggested values. You may customize these values for your requirements, even though the default values suggested should work well. In particular, the “Identification” field may be set to the number of the line provided by the telephone company for that line. Click on the “Next >” button.
  • The “Create Outbound Rule” page will allow you to quickly create a rule with which to deliver calls through this device. Specify a prefix for the rule to identify outbound calls. Click on the “Finish” button when ready, or click on the “Skip” button if you do not wish to create an outbound rule for this device at this stage.
  • The “Gateway Created” summary page will list the settings you will require to apply to the device.
  • If your device can handle 2 SIM cards, you will need to repeat steps 1 to 7, however at step 4 you will need to change the port to 5062.

Step 2: Configuring the Portech MV370/372

Configuring Basic Network Settings

  • Connect the Portech MV372 GSM gateway to the network and mains power supply. The device will boot up, using its factory-configured default IP address 192.168.0.100.
  • Now point your browser to the gateway’s configuration site: http://192.168.0.100

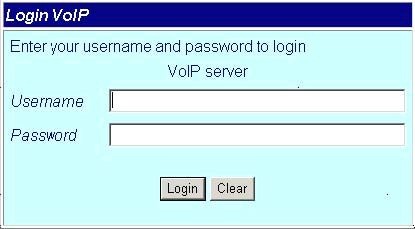

  • Enter the username and password of the device and click ‘OK’ to access the gateway’s configuration. The default username is “voip” and the password is “1234”.

clip_image001

  • On the “Network” node click on the “WAN Settings” subsection.
  • You should now set the desired IP address, subnet mask, Gateway and DNS settings for the device. Click “Submit” to confirm the changes.

Configuring the settings for the SIM Card

  • Point your browser to the gateway’s new IP.

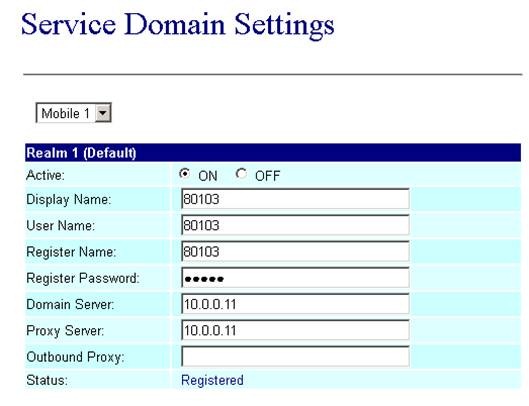

  • On the “Sip Settings” node click on the “Service Domain” subsection, and go to the “Realm 1 (Default)” section

clip_image002[9]

  • Click on Mobile 1 in the drop down list.
  • Set the “Active” field to “ON”
  • Set the “Display Name” field to the Virtual Port Number created by 3CX
  • Set the “User Name” field to the Virtual Port Number created by 3CX.
  • Set the “Register Name” field to the Virtual Port Number created by 3CX.
  • Set the “Register Password” field to the Authentication Password for the Virtual Port Number created by 3CX.
  • Set the “Domain Server” field to the Private IP Address of the PBX.
  • Set the “Proxy Server” field to the Private IP Address of the PBX
  • Click on the “Submit” button

If you wish to set this up for your second SIM Card then repeat the above steps after selecting “Mobile 2” in the drop down list in the first step.

Configuring Inbound Routing on the Portech

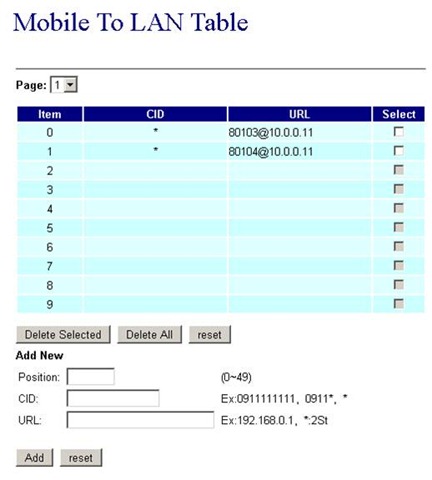

clip_image002[7]

  • Go to the “Route” node, click the “Mobile to Lan Settings” subsection, and scroll down to the “Add New” section
  • Set the “Position” field to “0” (without the quotes)
  • Set the “CID” field to “*” (without the quotes)
  • Set the “URL” field to “Virtual Port Number”@“Private IP of PBX”. So for example, if the Virtual Port Number for this SIM card is “80103”, and the Private IP Address of the PBX is “10.0.0.11”, you would set the field to “80103@10.0.0.11”
  • Click the “Add” button

If you have a second Sim Card then you should repeat the above steps setting the “Position” field to “1” (without the quotes)

Configuring Outbound Routing on the Portech

  • Go to the “Route” node, click the “LAN To Mobile Settings” subsection, and scroll down to the “Add New” section
  • Set the “Position” field to “0” (without the quotes)
  • Set the “URL” field to “*” (without the quotes)
  • Set the “Call Num” field to “#” (without the quotes)
  • Click the “Add” button

If you have a second SIM Card then you should repeat the above steps setting the “Position” field to “1” (without the quotes).

Configuring Telephony Parameters

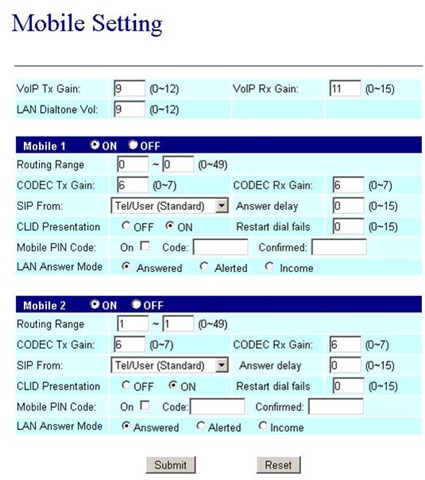

clip_image002[5]

  • On the Mobile node click on the Settings subsection
  • Set the Routing Range of Mobile 1 to 0~0
  • Set the Routing Range of Mobile 2 to 1~1
  • Click on the “Submit” button.

Saving the Portech Configuration

  • Click on the “Save Change” link in the sidebar and press Save
