Outbound Tranfer errors after upgrade to v10

Discussion in '3CX Phone System - General' started by bboyd, Jun 2, 2012.

Thread Status:
Not open for further replies.
  1. bboyd

    Joined:
    Nov 29, 2009
    Messages:
    23
    Likes Received:
    0
    Hello Everyone,
    I just upgraded to v10 and looks good so far. Only problem is that when a call is placed into the IVR or any extension is called and is in the "Out of Office" status it is suppose to forward to our cell phones. It was working perfect in v9. I backed up our server and just restored it when I installed v11. If you pickup the phone and dial the number 9+123456789 it goes thru no problem. The only problem I am having is when you call the extension "2302" that is set to out of office it says "Call transfer failed, No Answer". My outbound rules did not change. Still Calls to numbers with 9, strip 1 digit, prepend 1. which was working fine before the upgrade as was transfering when out of office was set. I have tried chaning the MyMobile to 123-456-789 and it was set to 9-123-456-7899 still no luck.

  2. bboyd

    Joined:
    Nov 29, 2009
    Messages:
    23
    Likes Received:
    0
    log:

    23:11:03.406 [CM505003]: Provider:[CallCentric - US] Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [] PBX contact: [sip:17772296003@76.0.68.199:5060]
    23:11:03.390 [CM503016]: Call(16): Attempt to reach <sip:2302@127.0.0.1:5060> failed. Reason: Not Registered
    23:11:03.390 [CM503016]: Call(16): Attempt to reach <sip:2302@127.0.0.1:5060> failed. Reason: Not Registered
    23:11:03.390 [CM503017]: Call(16): Target is not registered: Ext.IVRForward
    23:11:03.390 [CM503010]: Making route(s) to <sip:2302@127.0.0.1:5060>
    23:11:03.390 [CM505003]: Provider:[CallCentric - US] Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [] PBX contact: [sip:17772296003@76.0.68.199:5060]
    23:10:58.140 [MS211000] C:16.1: 204.11.192.22:61432 is delivering DTMF using RTP payload (RFC2833). In-Band DTMF tone detection is disabled for this call segment.
    23:10:51.140 [CM503007]: Call(16): Device joined: sip:8000@127.0.0.1:40600;rinstance=f71deeb546c1d7d5
    23:10:51.140 [CM503007]: Call(16): Device joined: sip:17772296003@callcentric.com:5060
    23:10:51.031 [CM505001]: Ext.8000: Device info: Device Identified: [Man: 3CX Ltd.;Mod: 3CX IVR;Rev: General] Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [3CX IVR] PBX contact: [sip:8000@127.0.0.1:5060]
    23:10:51.031 [CM503002]: Call(16): Alerting sip:8000@127.0.0.1:40600;rinstance=f71deeb546c1d7d5
    23:10:50.890 [CM503025]: Call(16): Calling Ext:Ext.8000@[Dev:sip:8000@127.0.0.1:40600;rinstance=f71deeb546c1d7d5]
    23:10:50.859 [CM503004]: Call(16): Route 1: Ext:Ext.8000@[Dev:sip:8000@127.0.0.1:40600;rinstance=f71deeb546c1d7d5]
    23:10:50.859 [CM503010]: Making route(s) to <sip:8000@192.168.2.2:5060>
    23:10:50.859 [CM505003]: Provider:[CallCentric - US] Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [] PBX contact: [sip:17772296003@76.0.68.199:5060]
    23:10:50.859 [CM503001]: Call(16): Incoming call from 1940xxxxxxx@(Ln.10000@CallCentric - US) to <sip:8000@192.168.2.2:5060>
    23:10:50.734 [CM503012]: Inbound out-of-office hours rule (unnamed) for 10000 forwards to DN:8000
    23:02:08.437 [CM506001]: STUN request to resolve SIP external IP:port mapping is sent to STUN server [ V4 199.192.206.228:3478 UDP target domain=unspecified mFlowKey=0 ] over Transport [ V4 192.168.2.2:5060 UDP target domain=unspecified mFlowKey=0 ]
    22:57:21.187 [CM503008]: Call(15): Call is terminated
    22:57:16.312 [CM505003]: Provider:[CallCentric - US] Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [] PBX contact: [sip:17772296003@76.0.68.199:5060]
    22:57:16.312 [CM503016]: Call(15): Attempt to reach <sip:2302@127.0.0.1:5060> failed. Reason: Not Registered
    22:57:16.312 [CM503016]: Call(15): Attempt to reach <sip:2302@127.0.0.1:5060> failed. Reason: Not Registered
    22:57:16.312 [CM503010]: Making route(s) to <sip:2302@127.0.0.1:5060>
    22:57:09.375 [MS211000] C:15.1: 204.11.192.22:61322 is delivering DTMF using RTP payload (RFC2833). In-Band DTMF tone detection is disabled for this call segment.
    22:56:56.281 [CM503007]: Call(15): Device joined: sip:17772296003@callcentric.com:5060
    22:56:55.890 [CM503002]: Call(15): Alerting sip:8000@127.0.0.1:40600;rinstance=f71deeb546c1d7d5
    22:56:55.031 [CM503004]: Call(15): Route 1: Ext:Ext.8000@[Dev:sip:8000@127.0.0.1:40600;rinstance=f71deeb546c1d7d5]
    22:56:54.796 [CM505003]: Provider:[CallCentric - US] Device info: Device Not Identified: User Agent not matched; Capabilities:[reinvite, replaces, able-no-sdp, recvonly] UserAgent: [] PBX contact: [sip:17772296003@76.0.68.199:5060]

  3. lneblett

    lneblett Well-Known Member

    Joined:
    Sep 7, 2010
    Messages:
    2,061
    Likes Received:
    56
    Look at the extension status in 3cx. Does it show the extension 2302 to be green? The log indicates the extension is not registered.i do not know how you have the forwarding rules established if not registered. However, I assume that no matter what you have a phone and want it to be registered. If not, then look at the forwarding rules for the extension and set how you want that extension to react based upon its status.

  4. bboyd

    Joined:
    Nov 29, 2009
    Messages:
    23
    Likes Received:
    0

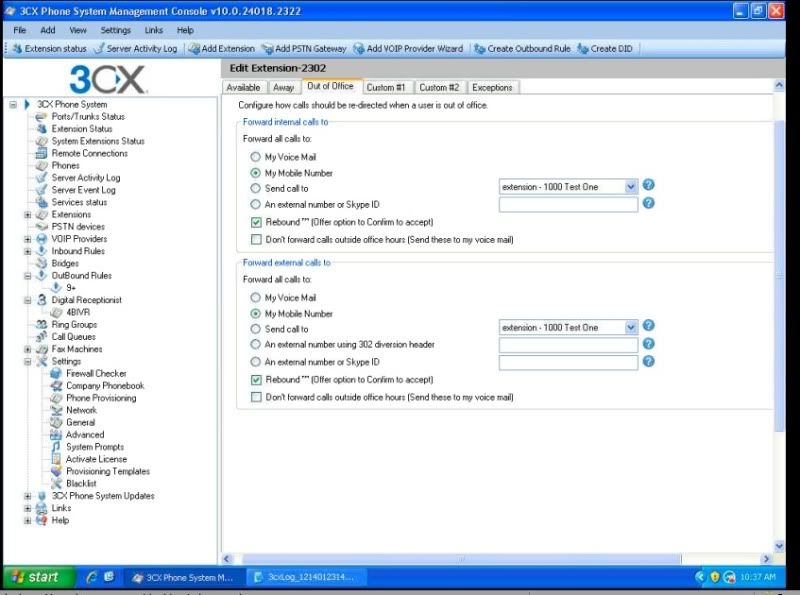

    That extension does have a phone connected to it and it is registered and still giving me the error. I also have a couple of virtural extensions that forward directly to cell phones with unregistered phones and still have the same problem. My forwarding rules are pretty simple, forward to my mobile when out of office status is set. and the mymobile have the 9940xxxxxxx number in it just as you would have to dial to make the call from the deskphone and that goes thru, and when the status is set to available the deskphone rings no problem. It just seams my problem is when the IVR is trying to transfer a phone call to my cell.



    [​IMG]

    [​IMG]

  5. leejor

    leejor Well-Known Member

    Joined:
    Jan 22, 2008
    Messages:
    10,365
    Likes Received:
    227
    You posted the Out of Office tab, but the "unregistered" setting is in the Away tab.

    And, you need to figure out why 3CX thinks the extension is not registered.

  6. bboyd

    Joined:
    Nov 29, 2009
    Messages:
    23
    Likes Received:
    0
    Here is the away tab

    [​IMG]

  7. leejor

    leejor Well-Known Member

    Joined:
    Jan 22, 2008
    Messages:
    10,365
    Likes Received:
    227
    Sorry, my mistake, I looked at it then went off to do something else before responding, forgetting what I had looked at. It's in the Available tab, at the bottom, if phone is busy or unregistered..
