Solved snom C520 template LLDP

[peoplet]

We are new to 3cx but noticed an issue in the default phone template for the snom C520. The built in template has LLDP disabled, which causes the device to ignore our voice vlan and becomes an issue because we use NAC. Is it possible to update the C520 template to enable LLDP which is the default for snom's configuration out of the box?

We had to create a custom template to enable LLDP which kind of sucks as a work around. Below is what we changed.

<lldp_med>
<enable>1</enable>
<interval>30</interval>
</lldp_med>



[snom]

Hi peoplet, we will check and discuss with 3CX if we can change the template as you suggest.



[snom]

Hi peoplet, we have updated the template of the C520 to enable LLDP. The modified template will be delivered with the next 3CX update.



[ChrisC_3CX]

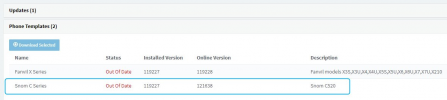

This is actually available now on 3CX v18.0.1.237. Just go into the updates section and you should see a template update for the C520:



You will of course have to reprovision the devices after you've downloaded the new template.



[peoplet]

Just tested it on Friday and over the weekend and its working. thanks.
