Can I create a speed dial to access another extension's voicemail?

[Anthony R]

Hi team,

I was trying to create a speed dial button like 9999pp#pEXTp#pPASSWORD to directly access another extension voicemail but it's not working. Is there a way to make it work, or pauses and # don't work on speed dials? Or maybe an outbound rule? Don't know how to make it work if possible.

Thank you in advance!!

Best,
Anthony



[paulodagraca]

Hi,

You did not mention the type of phone used, but if Yealink than try to read this post:

https://www.3cx.com/community/threa...-for-dialing-a-number-and-sending-dtmf.64326/

Paulo



[Anthony R]

Hi Paulo,

Actually, they're Yealinks T46U. Thanks for the article.



[leejor]

What you are trying to do requires a phone that "knows" to switch to DTMF after the initial number has been sent as a SIP message. That is not going to be something you can put in speed-dial unless the directory of the set allows this, and, can send the DTMF after the pause character.



[BHolmes81080]

This seemed to work for me: setting a custom speed dial with 999,#<ext>,<pin> is a workable solution as yealink and fanvil phones treat a comma as a pause and send DTMF tones.



[Anthony R]

Did you create the speed dial directly from the ip phone? Remotely from the web page it didn't work.



[BHolmes81080]

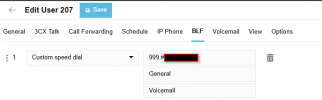

used custom speed dial in BLF settings



[Anthony R]

Yep I did it that way. But calls didn't go out.

Did you create any special outbound rule?



[BHolmes81080]

I did not.
IF it helps, I am using some fanvil phones and some yealink t46s phones

also using an SBC and hosted by 3cx instance



[Anthony R]

I'm using a yealink t46u , they should work too.

Thanks BHolmes for your reply.



[BHolmes81080]

The only other thing is to make sure you are using the commas. it should look like this as an example
999,#123,1234



[Anthony R]

Yep,

I'm using as example with an ext 1000 and password 000000:

9999,#,1000,0000# but it's taking the call as a simple full number and it's not doing it.

I've a no route to destination error.

I guess I've to modify Ip phone templates and configure the DTMF correctly to make it work.



[BHolmes81080]

try removing that comma after the # and the # at the end
I am not using that.

otherwise, yes, will require a custom template that will, of course, not be supported
