Click2Teams Integration

[RamblingGeekUK]

Hi All,

I'm new to 3cx (well the last time I installed it was 11 years ago) Anyway, I have configured on a PI and used sipgate for a line, this is all testing for a solution for a customer. I have signed up to Call2Teams Click2Teams as I was having issues with outbound/inbound calls. We managed to sort inbound and it seems to work OK.. He's asked me this question for outbound and I'm not sure, so I was hoping someone here would be able to give me some pointers, thanks in advance.

"We looked into the outbound failed calls and noticed that we are receiving 100 Trying to our Invite however, we are not receiving any 180 Ringing from you PBX. Are you able to check this on your end?"

Thanks - Wayne



[Evolute IT]

Click2Teams?

you mean Click2Call or Call2Teams?



[RamblingGeekUK]

Dang, yes, sorry



[YiannisH_3CX]

"We looked into the outbound failed calls and noticed that we are receiving 100 Trying to our Invite however, we are not receiving any 180 Ringing from you PBX. Are you able to check this on your end?"

Where is the call routed? To get a 180 ringing from the PBX the call must hit an extension or a ring group or something that can ring. Check where the call is routed and use the activity log to see if it gets there.



[Evolute IT]

Dang, yes, sorry

Call2Teams uses the same rules as a regular extension.

Can you login using the Webclient into an extension and make a test call?



[RamblingGeekUK]

Yes from the 3cx client I can make an outbound call and it works.



[Evolute IT]

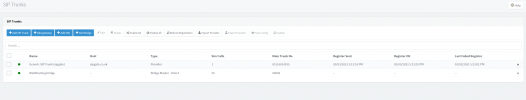

What is your current setup and how is your Call2Teams used? Are you using the integration or the SIP trunks only?



[RamblingGeekUK]

I have a single SIP from sipgate - for quick testing, I know it's not supported from 3cx...

Then I configured Call2Teams for allowing calls from Teams via 3cx, that was the intent.



[RamblingGeekUK]

This is the log from Call2Teams


2021-03-04 15:14:41 (UTC)
INVITE sip:+%NUMBER%@%FQDN% SIP/2.0
Contact: <sip:100@%IP%:%PORT%;transport=udp>
User-Agent: call2teams.com
Allow: INVITE, ACK, OPTIONS, CANCEL, BYE, NOTIFY
Call-ID: 2f8a66e5c27a9ac504a4e2f0e623a17c
Content-Type: application/sdp
CSeq: 1 INVITE
From: <sip:100@%FQDN%>;tag=61b16766da0269ca73653d995c6c2b65
Max-Forwards: 69
Min-SE: 300
Session-Expires: 3600
Supported: timer, sdp-anat
To: <sip:+%NUMBER%@%FQDN%;user=phone>
X-Cid: 2105592409432021151439@%IP%
Content-Length: 581

v=0
o=- 726471648 1248944995 IN IP4 %IP%
s=session
c=IN IP4 %IP%
b=CT:10000000
t=0 0
m=audio 13396 RTP/AVP 104 9 103 111 18 0 8 97 118 101 13
c=IN IP4 %IP%
a=rtcp:13397
a=label:main-audio
a=mid:2
a=sendrecv
a=rtpmap:104 SILK/16000
a=rtpmap:9 G722/8000
a=rtpmap:103 SILK/8000
a=rtpmap:111 SIREN/16000
a=fmtp:111 bitrate=16000
a=rtpmap:18 G729/8000
a=fmtp:18 annexb=no
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:97 RED/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-16
a=rtpmap:13 CN/8000
a=rtpmap:118 CN/16000
a=ptime:20


2021-03-04 15:14:41 (UTC), new state => First Invite Sent, accepted => Y

2021-03-04 15:14:41 (UTC), new state => Connecting, accepted => Y

2021-03-04 15:14:46 (UTC), new state => Cancelled, accepted => Y
Cancelled by 2105592409432021151439@%IP%

2021-03-04 15:14:46 (UTC)
Sent sip:%IP%:5060 => sips:%IP%:10032
CANCEL sip:+%NUMBER%@%FQDN% SIP/2.0
Call-ID: 2f8a66e5c27a9ac504a4e2f0e623a17c
CSeq: 2 CANCEL
From: <sip:100@%FQDN%>;tag=61b16766da0269ca73653d995c6c2b65
Proxy-Authorization: Digest username="YAVSxA10m8",realm="3CXPhoneSystem",nonce="414d53596040f96178:845a1e921933c7d75e4481588a0b48bb",uri="sip:+%NUMBER%@%FQDN%",response="ce54ae817911e4ac400443bed772e8ad",algorithm=MD5
To: <sip:+%NUMBER%@%FQDN%;user=phone>
Content-length: 0



2021-03-04 15:14:47 (UTC), new state => Ringing, accepted => N

2021-03-04 15:14:47 (UTC)
Received sip:%IP%:5060 => sips:%IP%:10032
SIP/2.0 481 Call/Transaction Does Not Exist
Via: SIP/2.0/UDP %IP%:%PORT%;branch=z9hG4bKa06e2b8fa0a3801bbad6d331032abfbefb16d6bca6d32e7
To: <sip:+%NUMBER%@%FQDN%;user=phone>;tag=fc91d371
From: <sip:100@%FQDN%>;tag=61b16766da0269ca73653d995c6c2b65
Call-ID: 2f8a66e5c27a9ac504a4e2f0e623a17c
CSeq: 2 CANCEL
Content-Length: 0



[RamblingGeekUK]

Sorry if, I did something wrong :-(



[Evolute IT]

As I said, I am unsure on how Call2Teams works, but I know that in the case of our integration (a different one), we never have issues like this.



[RamblingGeekUK]

Sorry if, I did something wrong :-(

I meant for the posting Yeah, I'm using sipgate, so the issue could be with them
