Solved HT818 FXS and Analog CALL Tranfer. How to?

[mastermindjf]

I have a HT818 and Intebras analog phones. How to tranfer a call using flash button?
I have adjusted the timming and the phone isn't ending the call after pressing the flash anymore, but not transfering yet.



[JohnS_3CX]

Hi,

You don't need to use the actual flash button, use the hook as a flash.

Hold it down briefly and release = Puts calls on Hold and gives you dial tone. Call the new destination now (wait until you hear progress tone).

Hold it down too long = It hangs up. This completes the blind transfer.

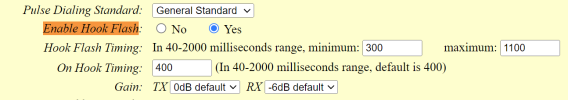

PS: In your screenshot, you have hook flash disabled, you may want to enable that first otherwise you get nothing.



[mastermindjf]

Hi,

You don't need to use the actual flash button, use the hook as a flash.

Hold it down briefly and release = Puts calls on Hold and gives you dial tone. Call the new destination now (wait until you hear progress tone).

Hold it down too long = It hangs up. This completes the blind transfer.


PS: In your screenshot, you have hook flash disabled, you may want to enable that first otherwise you get nothing.
View attachment 32855

John, first of all, thanks for the reply!
The phones are wireless type. How to proceed in this case.



[mastermindjf]

Solved with thi setup:

"Hook flash timing", Minimum = 40, e no Maximum = 500
"Enable hook flash" = YES

Thanks!



[JohnS_3CX]

Excellent! Yes, if they are cordless phones you have to use their flash button.

It just a matter of experimentation to find the right minimum and maximum those phones generate and you found it.
