Solved Unable to dial out on 2 extensions

[Bontz]

One of our clients cannot dial out on two of their extensions.

We have checked the outbound rules and that is fine , we have also checked that specific users have no set restrictions .
Below is the error message we get when we check under the activity log:

Flow] Target endpoint for 0785462394 can not be built!



[Alejandro_3CX]

Hi @Bontz I wonder if checked the pbx event log, do you see any event for the number that was dialed?



[Bontz]

Target endpoint for 0785462394 can not be built!



[Bontz]



[Bontz]

We have also checked the SIP trunk and itt is registered accordingly.



[bitn2]

Target endpoint for 0785462394 can not be built!

Thats not enough, please check the logs (at least set to medium) of the pbx for a call.



[Alejandro_3CX]

OK, I wonder if there are other outbound rules configured, can you please share a screenshoot of all the outbound rules. The order is important since the system checks from top to bottom

Also, does the extension belong to the group Peebles? check that it is added in that group.



[Bontz]

OK, I wonder if there are other outbound rules configured, can you please share a screenshoot of all the outbound rules. The order is important since the system checks from top to bottom

Also, does the extension belong to the group Peebles? check that it is added in that group.

Hi Alejandro,

Please see below:



The extensions belong to the group Honeydew. The client has 3 branc hences the 3 outgoing rules



[Alejandro_3CX]

why do you have two outbound rules using prefix 0-9 filtered with the same group Peebles? this will not work.

The last outbound rule Colourful Splendouur Honeydew will never be used for the users in Peebles, only the first one.



[Alejandro_3CX]

Hi Alejandro,

Please see below:

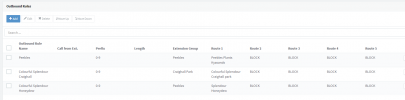

View attachment 37701
The extensions belong to the group Honeydew. The client has 3 branc hences the 3 outgoing rules

there is not any outbound roule filtered by a group called Honeydew



[Bontz]

Thats not enough, please check the logs (at least set to medium) of the pbx for a call.

Hi Bitn2:



[Alejandro_3CX]

@Bontz please check my responses above since that must be fixed.



[Bontz]

why do you have two outbound rules using prefix 0-9 filtered with the same group Peebles? this will not work.

The last outbound rule Colourful Splendouur Honeydew will never be used for the users in Peebles, only the first one.

Thank you , we changed that and it seems to beworking. Thank you so much



[Alejandro_3CX]

Thank you , we changed that and it seems to beworking. Thank you so much

You are welcome, good to know it is working.

Have a great day!



[bitn2]

Hi Bitn2:

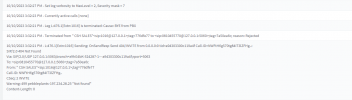

View attachment 37702

The call got rejected because the extension is not in the group pebbeplants. But @Alejandro_3CX said it allready. Glad you solved the problem.
