Solved 3CX HA Active/Passive su debian 10

[Riccardo M.]

Hello everyone,

I need your help about the configuration/HA operation. I've set 2 server linux with 3CX v18 (ENT. license) in HA Active/Passive but I've a issue, The situation is that:

Backup Active - restore Passive

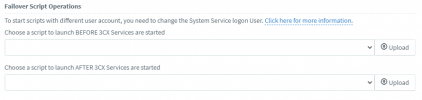

Failover Active - Failover Passive (I dont' know how set the scripts)

Service Active - Service Passive


I tried to put the active in down but the passive remains in the same state, the services which result stopped not change their status. I've also checked and that services in stopped can be start manually with:

$: systemctl start 3CXGatewayService

Someone can help me to know where I've wrong? and which scripts I've to use in Failover Script Operations?



thanks a lot and have a nice day



[cobaltit]

So noone can tell you what scripts to run. The scripts are to give you an option to perform actions OUTSIDE of 3CX if necessary. For example, if you are using your own FQDN or need to update internal DNS, then you would fire off a script to do so when it fails over. Scripts are optional, not required.



[Riccardo M.]

So noone can tell you what scripts to run. The scripts are to give you an option to perform actions OUTSIDE of 3CX if necessary. For example, if you are using your own FQDN or need to update internal DNS, then you would fire off a script to do so when it fails over. Scripts are optional, not required.

Hi

ok perfect thanks.
Instead for the passive and its own services, when the active is down I've to active that manually on passive or is not necessary but I wrong something on its configuration? Because all tasks are that suggested here Failover I did that but the passive continue to stay in the same status.



[NickD_3CX]

Hi

ok perfect thanks.
Instead for the passive and its own services, when the active is down I've to active that manually on passive or is not necessary but I wrong something on its configuration? Because all tasks are that suggested here Failover I did that but the passive continue to stay in the same status.

No, the Passive server services should start automatically when it detects that the Active server is down.

• How did you simulate the Active Server going down?
• Have you installed the Active and Passive Server using the same SIP, Tunnel and HTTP/S ports?
• Judging from the IP you have put in the Failover settings, I assume that both Active/Passive servers are on the same LAN right?



[Riccardo M.]

No, the Passive server services should start automatically when it detects that the Active server is down.

• How did you simulate the Active Server going down?
• Have you installed the Active and Passive Server using the same SIP, Tunnel and HTTP/S ports?
• Judging from the IP you have put in the Failover settings, I assume that both Active/Passive servers are on the same LAN right?

• How did you simulate the Active Server going down?
  • They're 2 virtual appliance, I've turned off the active server from VMWare.
• Have you installed the Active and Passive Server using the same SIP, Tunnel and HTTP/S ports?
  • yes, I've it. They have the same configuration

• Judging from the IP you have put in the Failover settings, I assume that both Active/Passive servers are on the same LAN right?
  • Yes they're on the same LAN



[Riccardo M.]

I did a test.
I've changing that on passive and turning off the Active

in this way the passive is switched in active:



but turned on the Active, the passive not return in stand-by automatically ????



[NickD_3CX]

but, turned on the Active the passive not return in stand-by automatically ????

Yes, this is the intended way. Once a Failover occurs, the fall back needs to be manual.
If both servers though are the same kind of specs, you could just simply leave the "new" Active server as is, and when the "old" Active gets fixed, you can make that one the Passive server.



[Riccardo M.]

ok thanks a lot for your support and availability, now that is clearer.
Now I'm seeing how works the script to change the internal FQDN on my DNS (windows 2019), in case I'll open a new post if I'll have issue!!!!!!
Have a nice weekend !!!!!!!
