Restoring encrypted connectivity after an auto-renewal failure.
For all 3CX-provided FQDNs, SSL certificates are configured to be automatically updated. This ensures that your 3CX remains secure, auto-renewing well before expiry.
However, if for some reason your 3CX system is unable to reach out to trigger and complete the auto-renewal, you will have to force the renewal. Following our previous blog on SSL certificates and certificate chains, this blog covers what to do if an auto-renewal fails.
Why does auto-renewal sometimes fail?
The typical root causes for this are one of the following:
- Firewall restrictions that stop the 3CX server from reaching for auto-renewal
- Internet connectivity issues during the auto-renewal attempt
Confirm that your certificate has expired
Run the following command from Windows PowerShell:
PS C:\Users\user> $uri = "https://examplepbx.3cx.com.cy"
PS C:\Users\user> $req = [Net.HttpWebRequest]::Create($uri)
PS C:\Users\user> try { $req.GetResponse() | Out-Null } catch {}
PS C:\Users\user> $req.ServicePoint.Certificate.GetExpirationDateString()
2/10/2026 1:30:00 PM
PS C:\Users\user>
…or from a Linux command line:
[email protected] ~ % URI="https://examplepbx.3cx.com.cy"
[email protected] ~ % curl -Ikv $URI 2>&1 | grep "expire"
* expire date: Feb 10 13:30:00 2026 GMT
[email protected] ~ %
…which will confirm that the certificate is indeed expired.
How can you resolve this?
You can manually trigger the certificate renewal process by performing the following procedure:
- In the 3CX Admin Console, navigate to "Admin → Advanced → Parameters"

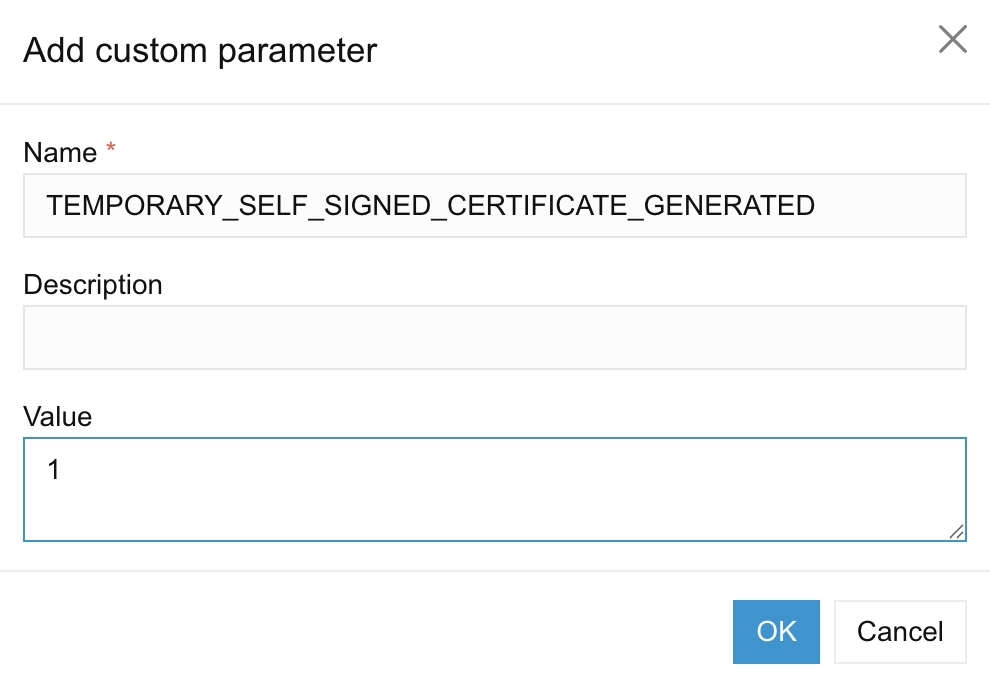

- Search for the Custom Parameter "TEMPORARY_SELF_SIGNED_CERTIFICATE_GENERATED" and set the value to 1
-
- If the parameter is not found, click the Add button to create it
- Trigger the renewal procedure manually:
- For Windows, run the following from CMD (Running as Administrator)
"C:\Program Files\3CX Phone System\Bin\PbxConfigTool.exe" -renew-certificates
-
- For Linux, run the following from the command line
sudo -u phonesystem /usr/lib/3cxpbx/PbxConfigTool -renew-certificates
- Wait for the process to complete; 5 minutes should be a safe delay
- Restart the nginx service:
- On Windows (from CMD running as Administrator):
sc stop "3CX PhoneSystem Nginx Server" && timeout /nobreak /t 5
sc start "3CX PhoneSystem Nginx Server"
-
- On Linux:
sudo service nginx reload
…and your SSL certificate should now be renewed. You can confirm that the certificate is updated by running the confirmation commands described above again.
